PWM Signal Output Pressure Transmitter
posttime£º1899-12-30  Font ¡¼ B M S ¡½  Readtime£º   [Close]

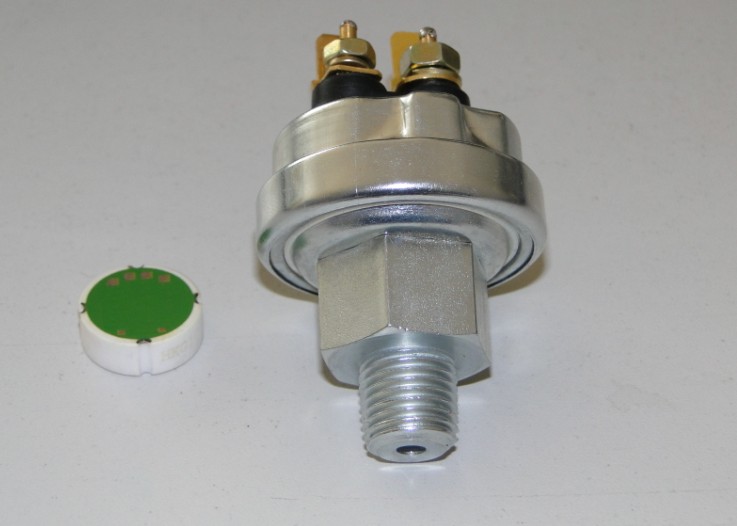

PWM Output Pressure Transmitter




The Pressure Transmitter which is manufactured by our own Piezoresistive Ceramic
Pressure Sensor and PWM signal output module has the characteristics of
  • high sensitivity,low temperature drift£¬
  • high linearity, high overload pressure£¬
  • excellent stability£¬rapid response and excellent EMC.

Parameters£º

Measurement range£º  0~5 MPa                  Overload pressure£º300% FS
Operating temperature£º-45~125¡æ             Voltage£º10V~30VDC
Operatering current£º £¼ 10mA                   Pulse frequency£º1 kHz
Ouput pulse width £º10%~90%                   Vibration£º 10g£¨20~5000Hz£©
Drop£º1m                                                  Impact£º 20g
EMC£º100 V/m  30MHz~1GHz                       Response£º0.3V/¦Ìs
ESD£º 15kV
Zero temperature coefficient£º ¡À0.001~ ¡À0.015 %FS/¡æ(-25¡æ ~ 125¡æ)
Full-Span temperature coefficient£º  -0.001~ -0.015 %FS/¡æ(-25¡æ ~ 125¡æ)
Accuracy£º 0.1%,0.2%,0.5%,1%,2%,3%(including linearity£¬hysteresis£¬repeatability)
Our products are conform to the auto standards of ISO7637
